Eigenschappen

ProductcodeNN.3020
Slanglengte 6.0m
Binnendiameter 8mm
Sensor Type Ni120
Nordson 223836
Melton 981XX012
Meler 102212100

Standard RTD, Auto, 5/16''- DN8 Ni120 Nordson Compatibel
6.0m / 8mm

NN.3020

Er bestaan 9 varianten van dit artikel, bekijk ze hier >

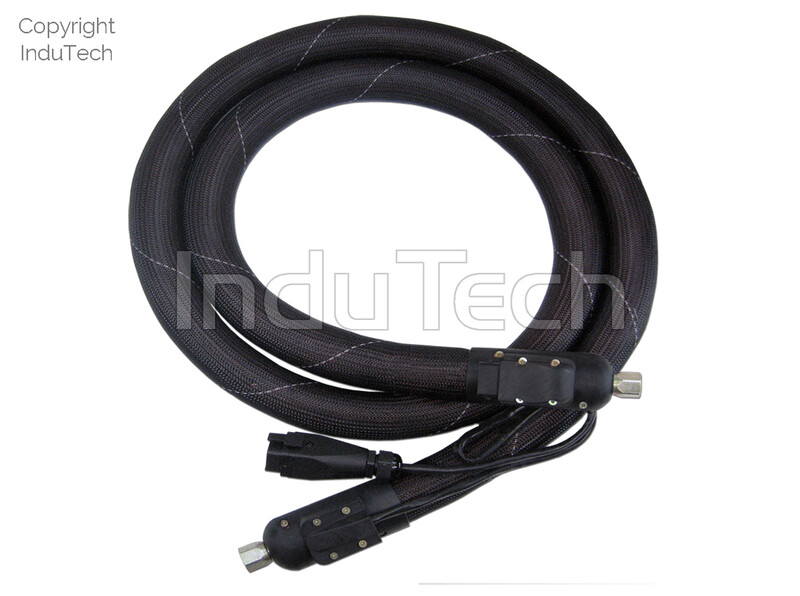

HM Heated Hose, Standard RTD Ni120, Auto,
ID 5/16''x 20 ft - DN8 x 6.00 m

- Protection Cover : Polyamid Braided Cover
- Temperature Sensor : Ni120
- Electrical : 240 VAC - 780 W

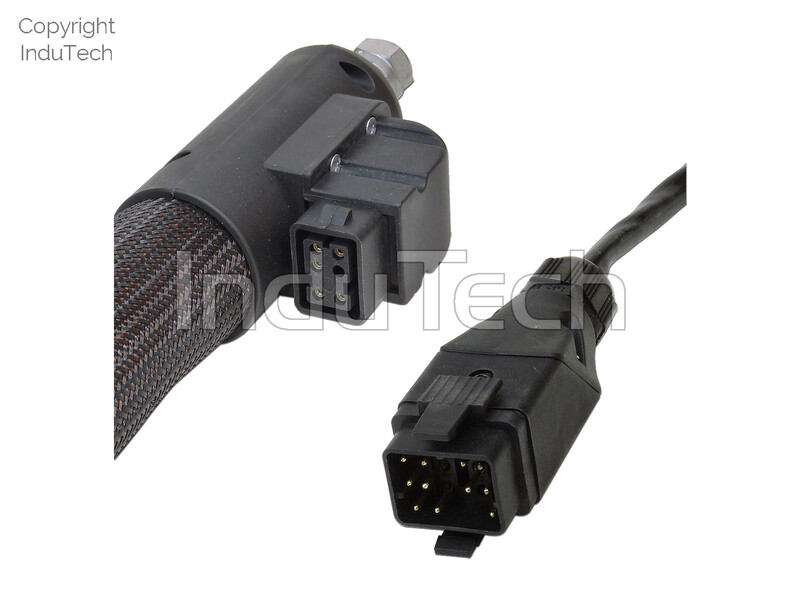

- Unit Side : Ni120-12p Connector, Cable 0,70m
- Gun Side : Ni120-6s Connector, Cap mounted
- Max. Temp. & Pressure : 200 °C - 160 Bar
- Hydraulic Fittings : DKJ 9/16-18

Nordson Compatible : Rediflex, ProBlue, VersaBlue, DuraBlue, 3000, Vista, 2300
Melton Compatible : EC-Series, C-Series, PC-Series

Links & downloads

Download productfiche

Varianten

Filter 9 van de 9 zichtbaar.

Productcode	Slanglengte	Binnendiameter
NN.3002	HM Lijmslang, Std Auto, Ni120, 5/16''x 2ft, DN8 x 0.60m	0.6m	8mm
NN.3004	HM Lijmslang, Std. Auto, Ni120, 5/16''x 4ft, DN8 x 1.20m	1.2m	8mm
NN.3006	HM Lijmslang, Std Auto, Ni120, 5/16''x 6ft, DN8 x 1.80m	1.8m	8mm
NN.3008	HM Lijmslang, Std Auto, Ni120, 5/16''x 8ft, DN8 x 2.40m	2.4m	8mm
NN.3010	HM Lijmslang, Std Auto, Ni120, 5/16''x 10ft, DN8 x 3.00m	3.0m	8mm
NN.3012	HM Lijmslang, Std Auto, Ni120, 5/16''x 12ft, DN8 x 3.60m	3.6m	8mm
NN.3016	HM Lijmslang, Std Auto, Ni120, 5/16''x 16ft, DN8 x 4.80m	4.8m	8mm
NN.3020	HM Lijmslang, Std Auto, Ni120, 5/16''x 20ft, DN8 x 6.00m	6.0m	8mm
NN.3024	HM Lijmslang, Std Auto, Ni120, 5/16''x 24ft, DN8 x 7.20m	7.2m	8mm
