Properties

Product codeMX.TC4013PT
Hose length 4.0m
Inner Diameter 13mm
Sensor Type Pt100
Nordson 222789
Melton 981XX446

TC Lijmslangen Pt100, DN13, Nordson MX Compatibel
4.0m / 13mm

MX.TC4013PT

pce

There are 16 variants of this article, view them here >

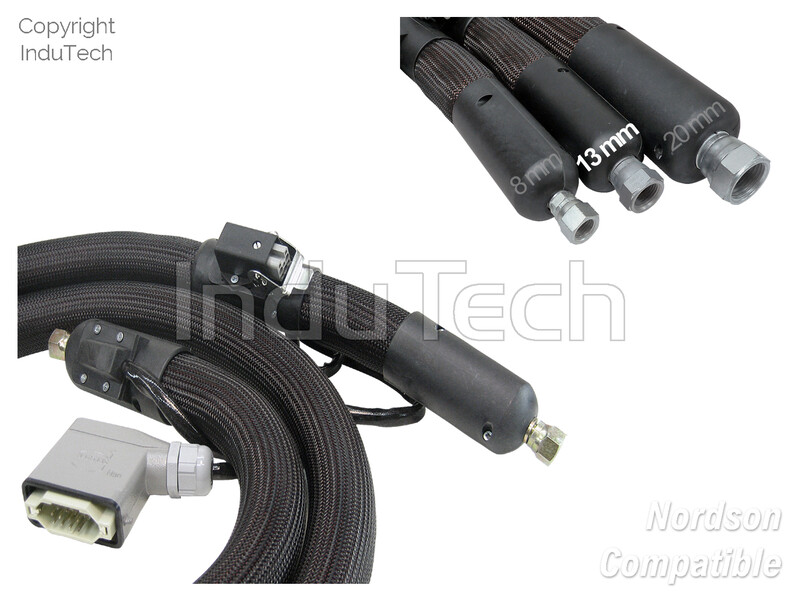

HM TC Hose, Pt100, MX Compatible, TC40-13, DN13 x 4.00m

- Protection Cover : Polyamid Braided Cover
- Temperature Sensor : Pt100
- Electrical : 240 VAC - 720 W

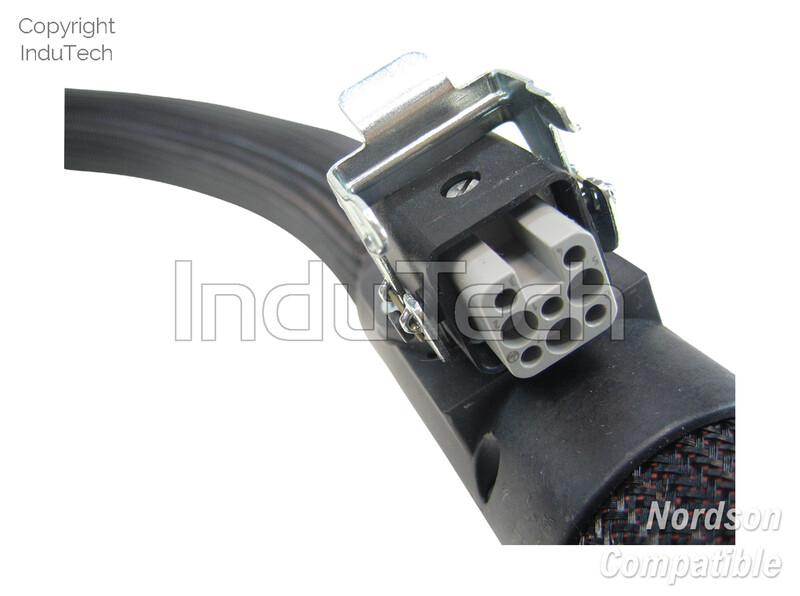

- Unit Side : Harting 15p Connector, Cable 2.00m
- Gun Side : Harting 8s Connector
- Max. Temp. & Pressure : 200 °C - 130 Bar
- Hydraulic Fittings : DKJ 3/4-16

Nordson Compatible : Nordson Meltex MX Series

Links & downloads

Download productfiche

Variants

Filter 16 of 16 visible.

Product code	Hose length	Inner Diameter
MX.TC0613PT	HM Lijmslang TC, Pt100, MX Compatibel, TC06-13, DN13 x 0.60m	0.6m	13mm
MX.TC1213PT	HM Lijmslang TC, Pt100, MX Compatibel, TC12-13, DN13 x 1.20m	1.2m	13mm
MX.TC1813PT	HM Lijmslang TC, Pt100, MX Compatibel, TC18-13, DN13 x 1.80m	1.8m	13mm
MX.TC2413PT	HM Lijmslang TC, Pt100, MX Compatibel, TC24-13, DN13 x 2.40m	2.4m	13mm
MX.TC3013PT	HM Lijmslang TC, Pt100, MX Compatibel, TC30-13, DN13 x 3.00m	3.0m	13mm
MX.TC4013PT	HM Lijmslang TC, Pt100, MX Compatibel, TC40-13, DN13 x 4.00m	4.0m	13mm
MX.TC5013PT	HM Lijmslang TC, Pt100, MX Compatibel, TC50-13, DN13 x 5.00m	5.0m	13mm
MX.TC6013PT	HM Lijmslang TC, Pt100, MX Compatibel, TC60-13, DN13 x 6.00m	6.0m	13mm
MX.TC7013PT	HM Lijmslang TC, Pt100, MX Compatibel, TC70-13, DN13 x 7.00m	7.0m	13mm
MX.TC8013PT	HM Lijmslang TC, Pt100, MX Compatibel, TC80-13, DN13 x 8.00m	8.0m	13mm
MX.TC9013PT	HM Lijmslang TC, Pt100, MX Compatibel, TC90-13, DN13 x 9.00m	9.0m	13mm
MX.TC10013PT	HM Lijmslang TC, Pt100 MX Compatibel, TC100-13, DN13 x 10.0m	10.0m	13mm
MX.TC11013PT	HM Lijmslang TC, Pt100 MX Compatibel, TC110-13, DN13 x 11.0m	11.0m	13mm
MX.TC12013PT	HM Lijmslang TC, Pt100 MX Compatibel, TC120-13, DN13 x 12.0m	12.0m	13mm
MX.TC13013PT	HM Lijmslang TC, Pt100 MX Compatibel, TC130-13, DN13 x 13.0m	13.0m	13mm
MX.TC14013PT	HM Lijmslang TC, Pt100 MX Compatibel, TC140-13, DN13 x 14.0m	14.0m	13mm
