Properties

Product codeMN-973XX205
Diameter 0.40mm (0.016")
Corner 4 x 22.5° °

HM Nozzles, Mini Sphere 3/8''UNF, 4 Orifice
0.40mm (0.016") / 4 x 22.5° °

MN-973XX205

pce

There are 36 variants of this article, view them here >

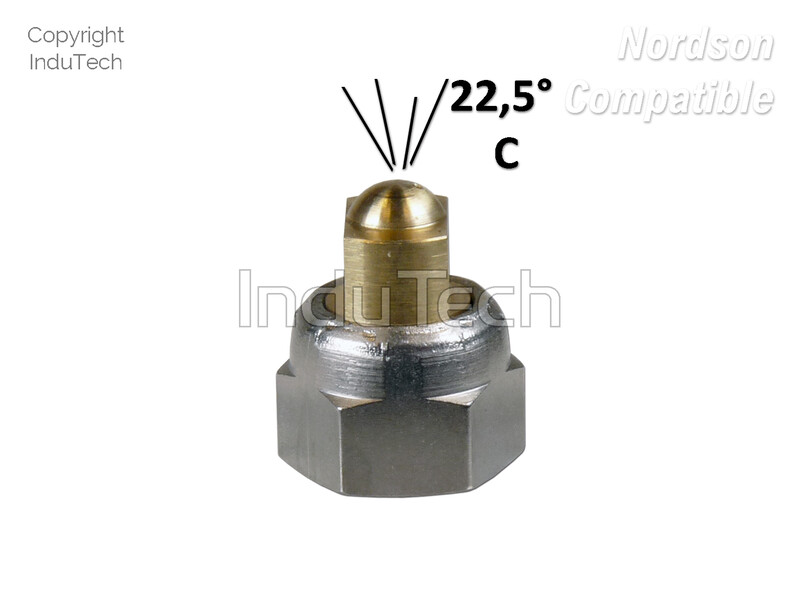

HM Nozzle Spherical, 4-ori x C22.5° x D 0.40mm (0.016)
Integrated Nut 3/8''UNF with Orientable Nozzle

- Bead Extrusion : 4 Orifice, 22.5° in Circle
- Orifice Diameter : 4 x D 0.40mm (0.016)
- Drilled Orifices

Nordson Compatible : Mini Dome Style Nozzles

Links & downloads

Download productfiche

Variants

Filter 36 of 36 visible.

Product code	Diameter	Corner
MN-973XX201	HM Nozzle, Mini Sphere 3/8UNF, 4 x C22.5° x 0.20 mm (0.008)	0.20mm (0.008")	4 x 22.5° °

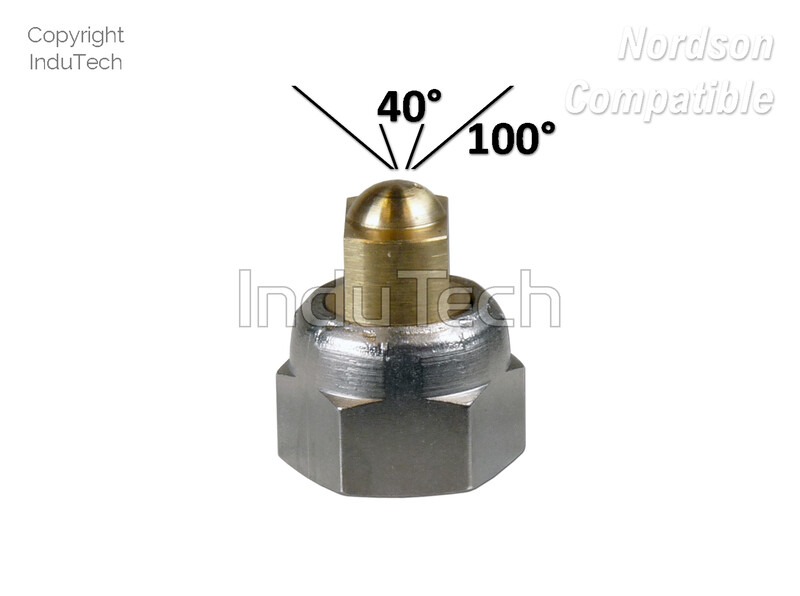

MN-973XX101	HM Nozzle, Mini Sphere 3/8UNF, 4 x 40°/100° x 0.20 mm (0.008	0.20mm (0.008")	40°/100° °

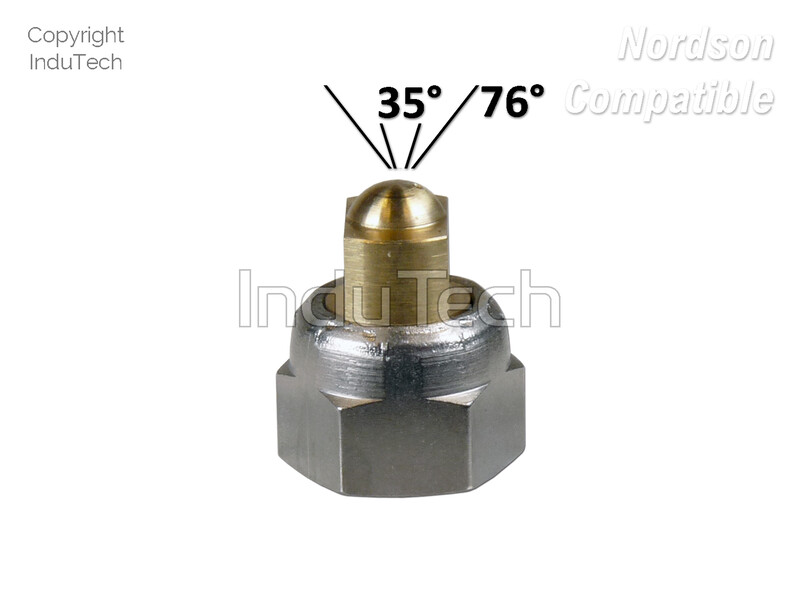

MN-972XX901	HM Nozzle, Mini Sphere 3/8UNF, 4 x 35°/76° x 0.20 mm (0.008)	0.20mm (0.008")	35°/76° °

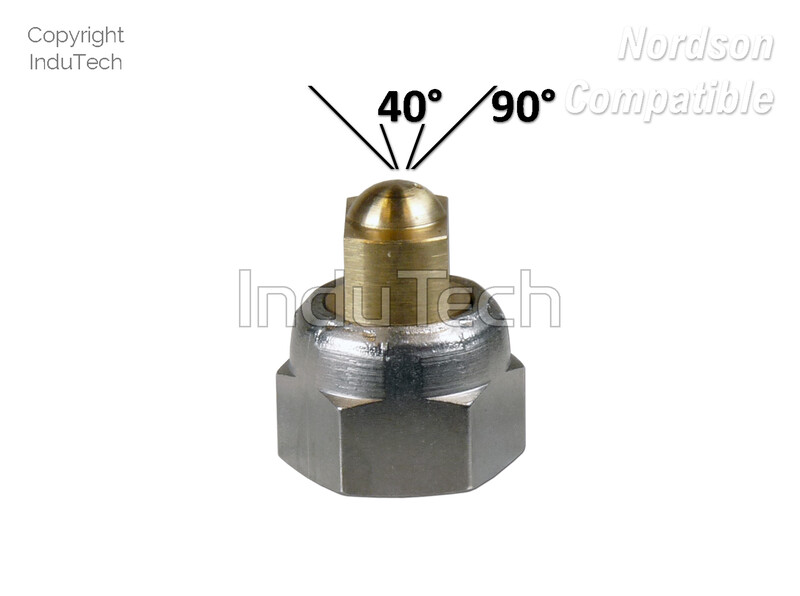

MN-973XX001	HM Nozzle, Mini Sphere 3/8UNF, 4 x 40°/90° x 0.20 mm (0.008)	0.20mm (0.008")	40°/90° °
MN-973XX202	HM Nozzle, Mini Sphere 3/8UNF, 4 x C22.5° x 0.25 mm (0.010)	0.25mm (0.010")	4 x 22.5° °
MN-973XX102	HM Nozzle, Mini Sphere 3/8UNF, 4 x 40°/100° x 0.25 mm (0.010	0.25mm (0.010")	40°/100° °
MN-972XX902	HM Nozzle, Mini Sphere 3/8UNF, 4 x 35°/76° x 0.25 mm (0.010)	0.25mm (0.010")	35°/76° °
MN-973XX002	HM Nozzle, Mini Sphere 3/8UNF, 4 x 40°/90° x 0.25 mm (0.010)	0.25mm (0.010")	40°/90° °
MN-973XX203	HM Nozzle, Mini Sphere 3/8UNF, 4 x C22.5° x 0.30 mm (0.012)	0.30mm (0.012")	4 x 22.5° °
MN-973XX103	HM Nozzle, Mini Sphere 3/8UNF, 4 x 40°/100° x 0.30 mm (0.012	0.30mm (0.012")	40°/100° °
MN-972XX903	HM Nozzle, Mini Sphere 3/8UNF, 4 x 35°/76° x 0.30 mm (0.012)	0.30mm (0.012")	35°/76° °
MN-973XX003	HM Nozzle, Mini Sphere 3/8UNF, 4 x 40°/90° x 0.30 mm (0.012)	0.30mm (0.012")	40°/90° °
MN-973XX204	HM Nozzle, Mini Sphere 3/8UNF, 4 x C22.5° x 0.35 mm (0.014)	0.35mm (0.014")	4 x 22.5° °
MN-973XX104	HM Nozzle, Mini Sphere 3/8UNF, 4 x 40°/100° x 0.35 mm (0.014	0.35mm (0.014")	40°/100° °
MN-972XX904	HM Nozzle, Mini Sphere 3/8UNF, 4 x 35°/76° x 0.35 mm (0.014)	0.35mm (0.014")	35°/76° °
MN-973XX004	HM Nozzle, Mini Sphere 3/8UNF, 4 x 40°/90° x 0.35 mm (0.014)	0.35mm (0.014")	40°/90° °
MN-973XX205	HM Nozzle, Mini Sphere 3/8UNF, 4 x C22.5° x 0.40 mm (0.016)	0.40mm (0.016")	4 x 22.5° °
MN-973XX105	HM Nozzle, Mini Sphere 3/8UNF, 4 x 40°/100° x 0.40 mm (0.016	0.40mm (0.016")	40°/100° °
MN-972XX905	HM Nozzle, Mini Sphere 3/8UNF, 4 x 35°/76° x 0.40 mm (0.016)	0.40mm (0.016")	35°/76° °
MN-973XX005	HM Nozzle, Mini Sphere 3/8UNF, 4 x 40°/90° x 0.40 mm (0.016)	0.40mm (0.016")	40°/90° °
MN-973XX206	HM Nozzle, Mini Sphere 3/8UNF, 4 x C22.5° x 0.45 mm (0.018)	0.45mm (0.018")	4 x 22.5° °
MN-973XX106	HM Nozzle, Mini Sphere 3/8UNF, 4 x 40°/100° x 0.45 mm (0.018	0.45mm (0.018")	40°/100° °
MN-972XX906	HM Nozzle, Mini Sphere 3/8UNF, 4 x 35°/76° x 0.45 mm (0.018)	0.45mm (0.018")	35°/76° °
MN-973XX006	HM Nozzle, Mini Sphere 3/8UNF, 4 x 40°/90° x 0.45 mm (0.018)	0.45mm (0.018")	40°/90° °
MN-973XX207	HM Nozzle, Mini Sphere 3/8UNF, 4 x C22.5° x 0.50 mm (0.020)	0.50mm (0.020")	4 x 22.5° °
MN-973XX107	HM Nozzle, Mini Sphere 3/8UNF, 4 x 40°/100° x 0.50 mm (0.020	0.50mm (0.020")	40°/100° °
MN-972XX907	HM Nozzle, Mini Sphere 3/8UNF, 4 x 35°/76° x 0.50 mm (0.020)	0.50mm (0.020")	35°/76° °
MN-973XX007	HM Nozzle, Mini Sphere 3/8UNF, 4 x 40°/90° x 0.50 mm (0.020)	0.50mm (0.020")	40°/90° °
MN-973XX208	HM Nozzle, Mini Sphere 3/8UNF, 4 x C22.5° x 0.60 mm (0.024)	0.60mm (0.024")	4 x 22.5° °
MN-973XX108	HM Nozzle, Mini Sphere 3/8UNF, 4 x 40°/100° x 0.60 mm (0.024	0.60mm (0.024")	40°/100° °
MN-972XX908	HM Nozzle, Mini Sphere 3/8UNF, 4 x 35°/76° x 0.60 mm (0.024)	0.60mm (0.024")	35°/76° °
MN-973XX008	HM Nozzle, Mini Sphere 3/8UNF, 4 x 40°/90° x 0.60 mm (0.024)	0.60mm (0.024")	40°/90° °
MN-973XX209	HM Nozzle, Mini Sphere 3/8UNF, 4 x C22.5° x 0.75 mm (0.030)	0.75mm (0.030")	4 x 22.5° °
MN-973XX109	HM Nozzle, Mini Sphere 3/8UNF, 4 x 40°/100° x 0.75 mm (0.030	0.75mm (0.030")	40°/100° °
MN-972XX909	HM Nozzle, Mini Sphere 3/8UNF, 4 x 35°/76° x 0.75 mm (0.030)	0.75mm (0.030")	35°/76° °
MN-973XX009	HM Nozzle, Mini Sphere 3/8UNF, 4 x 40°/90° x 0.75 mm (0.030)	0.75mm (0.030")	40°/90° °
