Caractéristiques

Code d’articleMN-972XX708
Diamètre 0.60mm (0.024")
Angle 60° °

Buses HM Mini Sphère, 3/8''UNF, Triple Orifice
0.60mm (0.024") / 60° °

MN-972XX708

pce

Il existe 30 variantes de cet article, consultez-les ici >

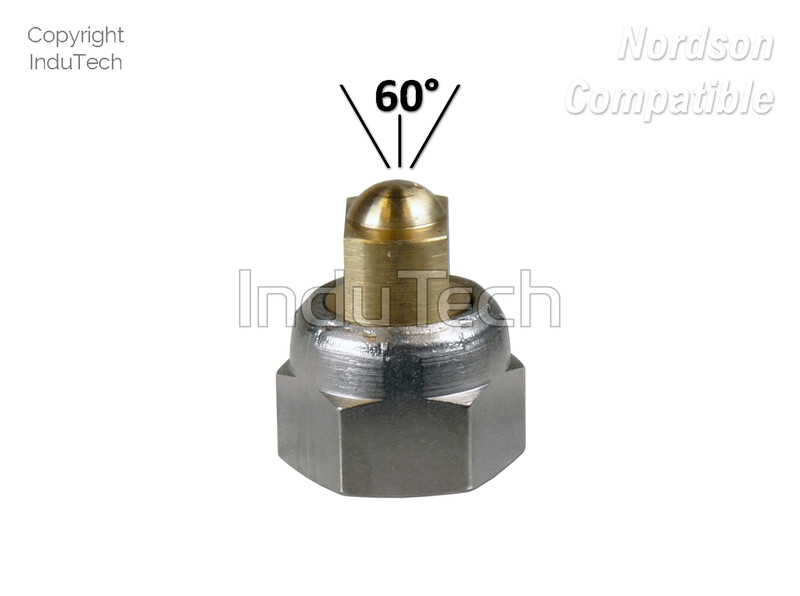

HM Nozzle Spherical, 3-ori x 60° x D 0.60mm (0.024)
Integrated Nut 3/8''UNF with Orientable Nozzle

- Bead Extrusion : 3 Orifice, 60° in Line
- Orifice Diameter : 3 x D 0.60mm (0.024)
- Drilled Orifices

Nordson Compatible : Mini Dome Style Nozzles

Liens et téléchargements

télécharger la fiche produit

Variantes

Filtrer 30 sur 30 visible.

Code d’article	Diamètre	Angle
MN-972XX601	Buse HM, Mini Sphère 3/8UNF, 3 x 30° x 0.20 mm (0.008)	0.20mm (0.008")	30° °
MN-973XX401	Buse HM, Mini Sphère 3/8UNF, 3 x 45° x 0.20 mm (0.008)	0.20mm (0.008")	45° °
MN-972XX701	Buse HM, Mini Sphère 3/8UNF, 3 x 60° x 0.20 mm (0.008)	0.20mm (0.008")	60° °
MN-972XX602	Buse HM, Mini Sphère 3/8UNF, 3 x 30° x 0.25 mm (0.010)	0.25mm (0.010")	30° °
MN-973XX402	Buse HM, Mini Sphère 3/8UNF, 3 x 45° x 0.25 mm (0.010)	0.25mm (0.010")	45° °
MN-972XX702	Buse HM, Mini Sphère 3/8UNF, 3 x 60° x 0.25 mm (0.010)	0.25mm (0.010")	60° °
MN-972XX603	Buse HM, Mini Sphère 3/8UNF, 3 x 30° x 0.30 mm (0.012)	0.30mm (0.012")	30° °
MN-973XX403	Buse HM, Mini Sphère 3/8UNF, 3 x 45° x 0.30 mm (0.012)	0.30mm (0.012")	45° °
MN-972XX703	Buse HM, Mini Sphère 3/8UNF, 3 x 60° x 0.30 mm (0.012)	0.30mm (0.012")	60° °
MN-972XX604	Buse HM, Mini Sphère 3/8UNF, 3 x 30° x 0.35 mm (0.014)	0.35mm (0.014")	30° °
MN-973XX404	Buse HM, Mini Sphère 3/8UNF, 3 x 45° x 0.35 mm (0.014)	0.35mm (0.014")	45° °
MN-972XX704	Buse HM, Mini Sphère 3/8UNF, 3 x 60° x 0.35 mm (0.014)	0.35mm (0.014")	60° °
MN-972XX605	Buse HM, Mini Sphère 3/8UNF, 3 x 30° x 0.40 mm (0.016)	0.40mm (0.016")	30° °
MN-973XX405	Buse HM, Mini Sphère 3/8UNF, 3 x 45° x 0.40 mm (0.016)	0.40mm (0.016")	45° °
MN-972XX705	Buse HM, Mini Sphère 3/8UNF, 3 x 60° x 0.40 mm (0.016)	0.40mm (0.016")	60° °
MN-972XX606	Buse HM, Mini Sphère 3/8UNF, 3 x 30° x 0.45 mm (0.018)	0.45mm (0.018")	30° °
MN-973XX406	Buse HM, Mini Sphère 3/8UNF, 3 x 45° x 0.45 mm (0.018)	0.45mm (0.018")	45° °
MN-972XX706	Buse HM, Mini Sphère 3/8UNF, 3 x 60° x 0.45 mm (0.018)	0.45mm (0.018")	60° °
MN-972XX607	Buse HM, Mini Sphère 3/8UNF, 3 x 30° x 0.50 mm (0.020)	0.50mm (0.020")	30° °
MN-973XX407	Buse HM, Mini Sphère 3/8UNF, 3 x 45° x 0.50 mm (0.020)	0.50mm (0.020")	45° °
MN-972XX707	Buse HM, Mini Sphère 3/8UNF, 3 x 60° x 0.50 mm (0.020)	0.50mm (0.020")	60° °
MN-972XX608	Buse HM, Mini Sphère 3/8UNF, 3 x 30° x 0.60 mm (0.024)	0.60mm (0.024")	30° °
MN-973XX408	Buse HM, Mini Sphère 3/8UNF, 3 x 45° x 0.60 mm (0.024)	0.60mm (0.024")	45° °
MN-972XX708	Buse HM, Mini Sphère 3/8UNF, 3 x 60° x 0.60 mm (0.024)	0.60mm (0.024")	60° °
MN-972XX616	Buse HM, Mini Sphère 3/8UNF, 3 x 30° x 0.70 mm (0.028)	0.70mm (0.028")	30° °
MN-972XX609	Buse HM, Mini Sphère 3/8UNF, 3 x 30° x 0.75 mm (0.030)	0.75mm (0.030")	30° °
MN-973XX409	Buse HM, Mini Sphère 3/8UNF, 3 x 45° x 0.75 mm (0.030)	0.75mm (0.030")	45° °
MN-972XX709	Buse HM, Mini Sphère 3/8UNF, 3 x 60° x 0.75 mm (0.028)	0.75mm (0.030")	60° °
MN-973XX410	Buse HM, Mini Sphère 3/8UNF, 3 x 45° x 1.00 mm (0.040)	1.00mm (0.040")	45° °
MN-972XX710	Buse HM, Mini Sphère 3/8UNF, 3 x 60° x 1.00 mm (0.040)	1.00mm (0.040")	60° °
